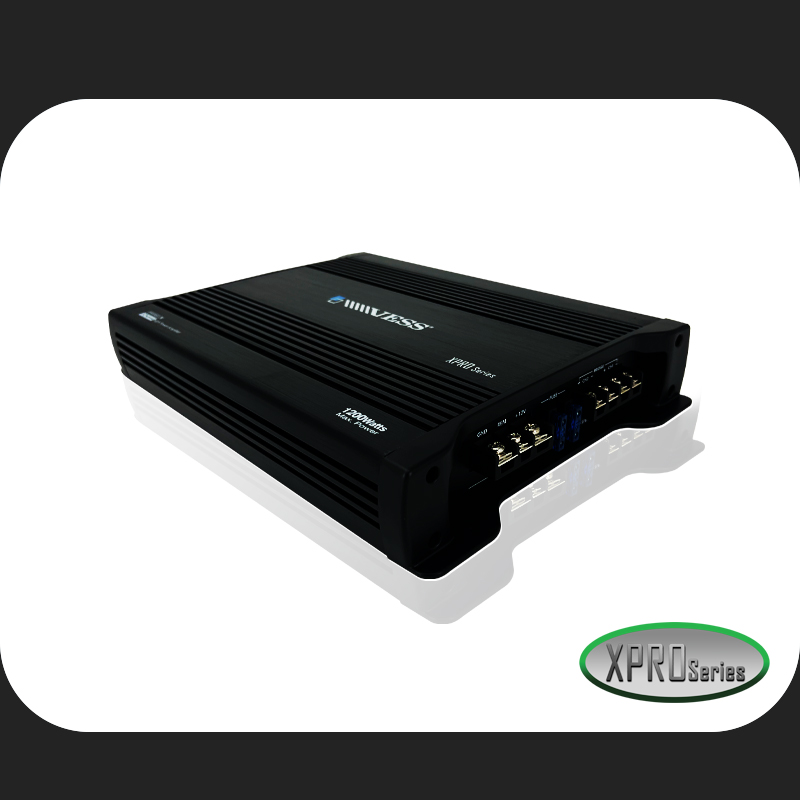

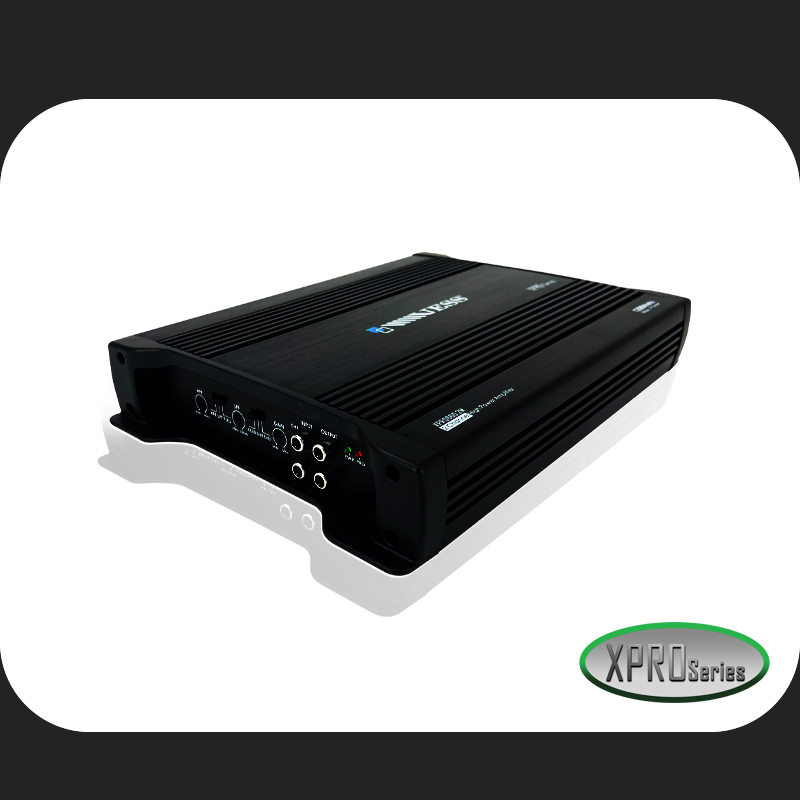

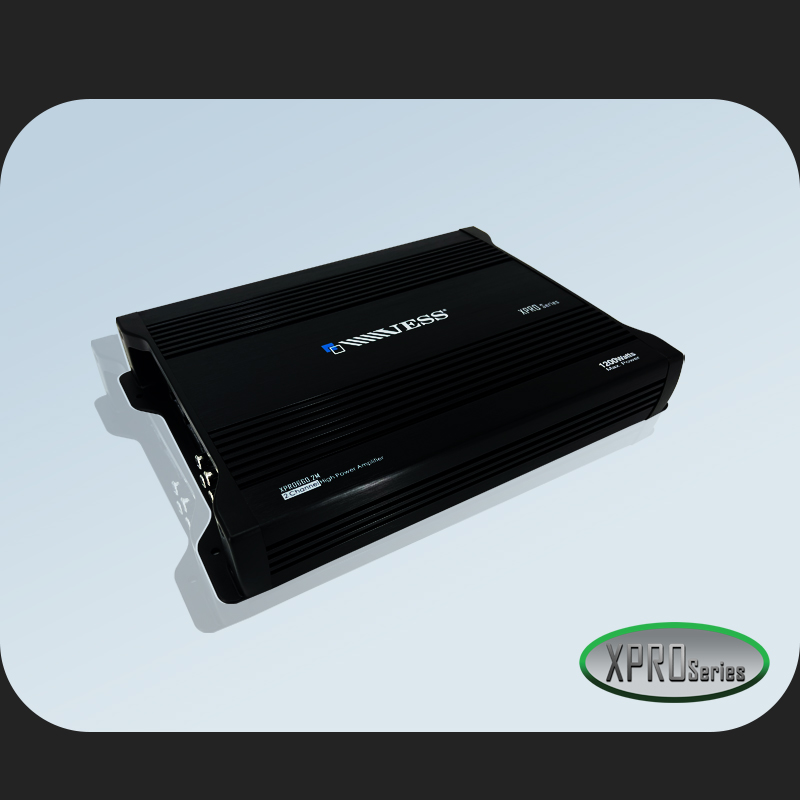

VESS 2 CHANNEL HIGH POWER AMPLIFIER
GENERAL SPECS
| TYPE |
POWER AMPLIFIER |
| MODEL |
XPRO660.2M |
| OUTPUT CHANNEL |
2 CHANNEL |
|
POWER AMPLIFIER TECHNOLOGY |
CLASS D |
| SIZE | 50mm x 290mm x 210mm |
PERFORMANCE SPECS
|
SUPPLY VOLTAGE |
11V - 15V DC |
| POWER OUTPUT 4 Ohm | 70W x 2 |
| POWER OUTPUT 2 Ohm | 100W x 2 |
| POWER OUTPUT 4 Ohm | 180W x 1 |
| FREQUENCY RESPONSE | 20Hz - 22kHz (-3dB) |
| SIGNAL-TO-NOISE RATIO | 90dB |
| INPUT IMPEDANCE | 22K Ohm |
| INPUT SENSITIVITY | 300mV - 6V |
| THD | <0.05% |
| HIGH PASS FREQUENCY | 80Hz - 4kHz |
| LOW PASS FREQUENCY | 40Hz - 300Hz |
| BASS BOOST | 0dB / +6dB / +12dB |
